ハードディスクの増設作業

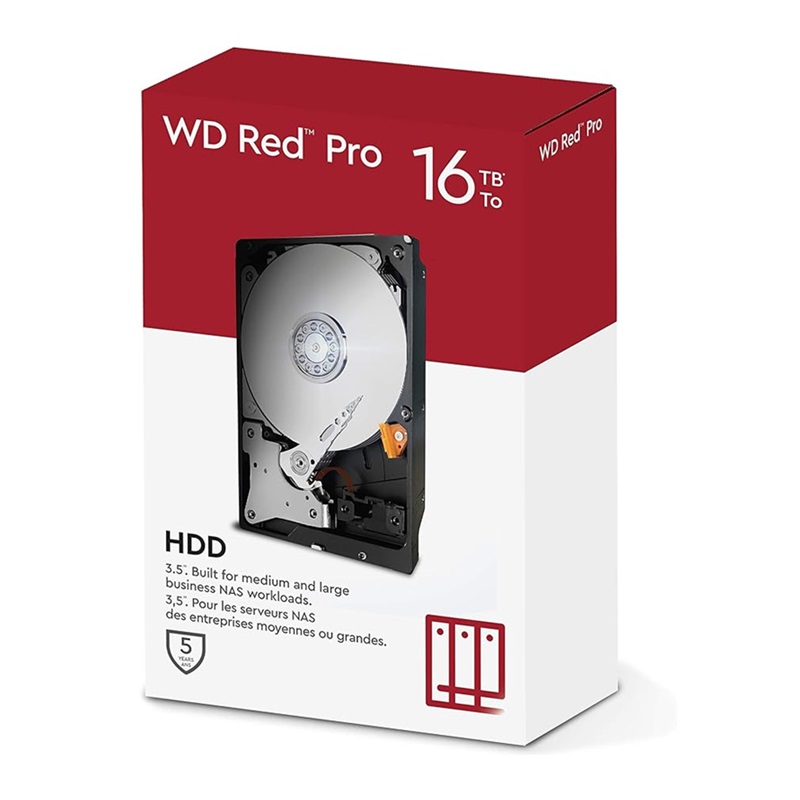

こいつを購入。

パーティション作成

いつも通りパーティション作成をしようとすると次のようなメッセージが出てくる

DOS partition table format cannot be used on drives for volumes larger than 2199023255040 bytes for 512-byte sectors. Use GUID partition table format (GPT)

つまり

DOSパーティションテーブルフォーマットは、512バイトセクタで2TBを超えるボリュームのドライブでは使用できません。GUIDパーティションテーブルフォーマット(GPT)を使用してください。

ってこと。なのでコマンドでは g を押すのを忘れずに。

root@wasat:~# fdisk /dev/sda

Welcome to fdisk (util-linux 2.37.2).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.

Device does not contain a recognized partition table.
The size of this disk is 14.6 TiB (16000900661248 bytes). DOS partition table format cannot be used on drives for volumes larger than 2199023255040 bytes for 512-byte sectors. Use GUID partition table format (GPT).

Created a new DOS disklabel with disk identifier 0x7f1fbc69.

Command (m for help): g
Created a new GPT disklabel (GUID: 4A9CF6C1-307D-294B-AA3C-5F5B71C7FAE3).

Command (m for help): w
The partition table has been altered.
Calling ioctl() to re-read partition table.
Syncing disks.

これでMBRではなくGPTパーティションテーブル形式になる。

root@wasat:~# fdisk /dev/sda

Welcome to fdisk (util-linux 2.37.2).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.


Command (m for help): n
Partition number (1-128, default 1): 1
First sector (2048-31251759070, default 2048):
Last sector, +/-sectors or +/-size{K,M,G,T,P} (2048-31251759070, default 31251759070):

Created a new partition 1 of type 'Linux filesystem' and of size 14.6 TiB.

Command (m for help): w
The partition table has been altered.
Calling ioctl() to re-read partition table.
Syncing disks.

パーティションの初期化

root@wasat:~# fdisk -l
Disk /dev/loop0: 63.95 MiB, 67051520 bytes, 130960 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/loop1: 63.97 MiB, 67080192 bytes, 131016 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/loop2: 86.99 MiB, 91213824 bytes, 178152 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/loop3: 87.04 MiB, 91267072 bytes, 178256 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/loop4: 40.43 MiB, 42393600 bytes, 82800 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/loop5: 38.83 MiB, 40714240 bytes, 79520 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/nvme0n1: 953.87 GiB, 1024209543168 bytes, 2000409264 sectors
Disk model: INTEL SSDPEKNU010TZ
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: gpt
Disk identifier: 06E51043-BBD9-454F-9A41-584EF1BB91D8

Device           Start        End    Sectors   Size Type
/dev/nvme0n1p1    2048    2203647    2201600     1G EFI System
/dev/nvme0n1p2 2203648 2000406527 1998202880 952.8G Linux filesystem


Disk /dev/sda: 14.55 TiB, 16000900661248 bytes, 31251759104 sectors
Disk model: WDC WD161KFGX-68
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: 4A9CF6C1-307D-294B-AA3C-5F5B71C7FAE3

Device     Start         End     Sectors  Size Type
/dev/sda1   2048 31251759070 31251757023 14.6T Linux filesystem

root@wasat:~# mkfs -t ext4 /dev/sda1
mke2fs 1.46.5 (30-Dec-2021)
Creating filesystem with 3906469627 4k blocks and 488308736 inodes
Filesystem UUID: 741add7f-c471-4ed2-8d3b-dde931485ca3
Superblock backups stored on blocks:
        32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632, 2654208,
        4096000, 7962624, 11239424, 20480000, 23887872, 71663616, 78675968,
        102400000, 214990848, 512000000, 550731776, 644972544, 1934917632,
        2560000000, 3855122432

Allocating group tables: done
Writing inode tables: done
Creating journal (262144 blocks): done
Writing superblocks and filesystem accounting information: done
